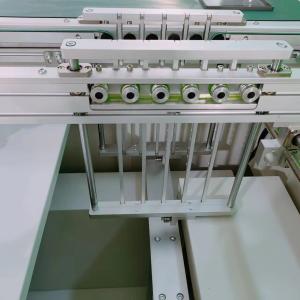

PCB Buffer Dual Track Conveyor SMT Production NG board storage
buffer Stacker Conveyor 1 meter Single rail conveyor HXT-B350
Machine
Description
Suitable for the perfect partner of AOI and SPI matching in the
production line, this equipment can separate good boards and bad
boards on the production line Reject, detect and pass, three modes
are optional, all aluminum frame available detection position.
Smooth and parallel width adjustment (stainless steel screw).
Customize the number of suspension boards according to customer
requirements.
Variable speed control.
The appearance structure is made of sheet metal structure and
aluminum profile into the frame, the surface is sprayed, and the
color is corrugated white.
Microcomputer PLC control system, stable and reliable work.
Touch screen display operation, with automatic fault diagnosis
function, convenient man-machine dialogue.
A variety of sound and light and touch screen prompt alarm
function.
Transmission by stepping motor.
Double line number to distinguish between NGOK.
Compatible with SMEMA interface.
Double-track Screening Dock
1. Suitable for the perfect partner of AOI and SPI matching in the
production line, this equipment can separate good boards and bad
boards on the production line.
2. NG/OK product screening and buffering machine This device can
automatically pass the OK good boards to the next station and
automatically save the bad boards according to the NG or OK signal
sent by the upper station. It can save up to 10 pieces, and the
machine will make a sound after 10 pieces are stored. Light alarm
prompt.
3. Distribution of fixed and moving rails: 1-3 fixed rails, 2-4
movable rails.
4. Conveying speed: adjustable speed, 0.5-15 m/min or specified by
the user.
5. Number of buffers: 10 pieces*2. 6. OK board area: direct
transmission, NG can be stored and selected automatic alarm.
Product Specification
Functional Specifications |
| |
Transfer speed | 0.5~20m/min |
Number of storage boards | 10pcs |
Sensor brand | OMRON |
Transport height | 900 ± 20mm |
PCB size | 50x50mm~460x350mm |
PCB thickness | Thinnest 0.4mm |
Conveying direction | left-right or right-left optional |
Air pressure flow | 4~6bar, up to 10L/min |
Body weight | 80kg |
Power supply and negative charge | AC220V± 10V, 50/60HZ |
Delivery weight | 60~2000g |
External shape size (length*width*height) | 1000mm x 800mm x 900mm |
Parts Details |
Lift motor | Chinese University of Taiwan |
Conveyor Type | Flat belt |
Three-color light | Owen LED light |
Signal communication interface | Online Connection (Standard SMEMA) |
PCB conveyor track | Use special guide rail and imported round φ3mm belt |
Transmission motor | 15W speed control motor (1 set) |
Control System | PLC control system |
Spacing distance | The maximum distance between each layer is 30MM |
Frame material | All sheet metal welding, the surface is electrostatic powder
sprayed computer gray |
Standard signal | Standard four-core signal cable is used, which can be directly
connected to other equipment for use |
Applications:
Widely used in electronics manufacturing, consumer electronics,
automobile electronics, communications equipment, aerospace,
medical equipment, LED lamps, computers and peripherals, smart
home, smart logistics, miniature and high power ratio electronic
devices.
